Did you know that approximately 65% of GN15 scratch-builds rely on the humble Hornby 0-4-0 chassis for power? It's a frustrating reality that while a 3D-printed body provides an incredible canvas, the mechanical side often presents a steep learning curve. When you're building gn15 model railway kits, the excitement of a new project can quickly fade if a costly donor locomotive doesn't fit the shell or stalls during slow-speed industrial shunting. We understand that finding the right balance between physical clearance and reliable gearing is difficult, but we've developed a structured approach to simplify your selection process.
This guide promises to help you master the art of selecting, measuring, and fitting the ideal donor chassis to bring your models to life. We'll provide a clear list of compatible 2026 units, such as the Hornby SR Class B4 available for around £35.99, while addressing the latest NMRA track and wheel standards. You'll learn a foolproof method for measuring internal clearances and mounting 3D-printed bodies to metal frames. By the end of this article, you'll have the technical confidence to ensure your locomotive runs smoothly at the low speeds required for a realistic narrow gauge layout.
Key Takeaways
- Standard gauge track presents a scaling challenge, but using 16.5mm rails for 1:24 models provides a perfect representation of 15-inch minimum gauge prototypes.
- Internal clearances are often tighter than they appear, so we utilize digital calipers and modelling clay to ensure a clash-free fit within the shell.
- Selecting an incompatible motor is a common financial pitfall, but our directory highlights the most reliable 2026 donor units for building gn15 model railway kits.
- Mounting a new body requires careful modification, so we provide techniques for stripping donor shells and trimming tabs without compromising the motor or pickups.
- Resin bodies often lack the mass needed for smooth running, but adding internal ballast allows you to achieve a realistic, slow-speed industrial crawl.
Understanding the GN15 Scale-to-Gauge Relationship
The world of GN15 modelling often seems contradictory to newcomers. You are working with G scale (1:24) proportions, yet your trains run on the same 16.5mm track used by OO and HO gauge models. This specific combination allows modellers to represent 15-inch "minimum gauge" railways, which were historically used for estate work, mines, and small-scale industrial transport. While the Gn15 Wikipedia page provides a deeper dive into the technical history, the practical appeal lies in the size. You get the presence and detail of a large scale model without needing a massive room for the layout.
When you start building gn15 model railway kits, you'll quickly notice a lack of "ready-to-run" locomotives in high street shops. This is a significant constraint for those used to standard gauge modelling where everything is plug-and-play. However, the community has found a proactive solution through the "donor chassis" culture. By utilizing mass-produced OO/HO mechanisms from brands like Hornby and Bachmann, you gain access to reliable, cost-effective power that is easy to maintain and repair.
To better understand how these proportions look in motion, watch this helpful video showing a miniature industrial line in action:
The Industrial Narrow Gauge Aesthetic
GN15 is the premier choice for enthusiasts who enjoy "micro layouts." Because the track footprint is small, you can fit a highly detailed industrial scene into a space as tiny as a bookshelf. Whether you're modelling a refined estate railway or a gritty, weathered quarry line, the goal is to capture a specific atmosphere. If you're still finding your feet with these concepts, it's helpful to read our guide on What is a Narrow Gauge Railway? to see where GN15 fits in the wider hobby.
Scale vs. Gauge: Avoiding Common Pitfalls
It's easy to confuse GN15 with other narrow gauge scales like O-16.5 (7mm scale) or On30. While they all share the same 16.5mm track gauge, the physical size of the locomotive bodies is vastly different. A standard OO gauge locomotive might look tiny on your workbench, but once you fit a GN15 shell, it transforms into a massive industrial "critter." Always keep a 1:24 scale figure nearby when building gn15 model railway kits. This simple visual check ensures your cab height and door placements look correct alongside the donor chassis.

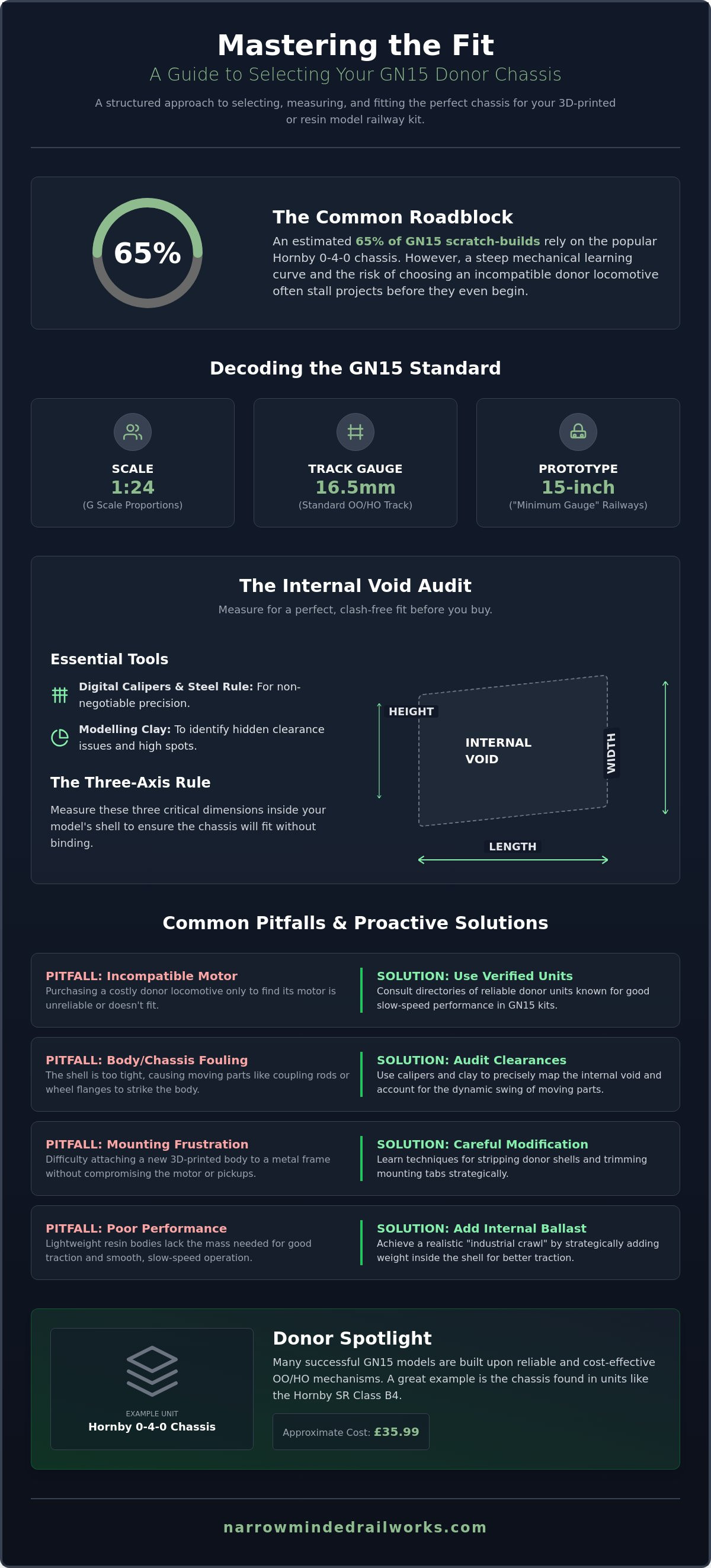

The Internal Void Audit: Measuring for a Perfect Fit
When you are building gn15 model railway kits, the most common pitfall is selecting a chassis based solely on external photographs. A donor unit might look the part, but the physical reality of the "internal void" often tells a different story. The internal void is the actual hollow space inside your 3D-printed or resin shell. If this space is even a millimetre too narrow, the motor will bind, or the body will sit at an unrealistic height. We recommend a proactive approach by conducting a full audit before you purchase your donor locomotive.
To get started, you'll need a few essential tools. A set of digital calipers is non-negotiable for precision, while a steel rule helps measure longer spans. We also suggest using a small amount of modelling clay. By pressing the clay inside the shell and then fitting the chassis, you can see exactly where the "squish" is thinnest, identifying hidden clearance issues. This method is particularly effective for checking the "Three-Axis Rule":
- Length: The distance from the front buffer beam to the rear drag box.
- Width: The narrowest internal point, usually found between the tanks or boiler sides.
- Height: The vertical clearance from the rail head to the highest point of the motor.
Don't forget to account for dynamic movement. Static measurements don't show the "swing" of the coupling rods or wheel flanges on tight industrial curves. If your shell is too tight, these moving parts will strike the resin walls and cause a derailment. If you plan to add digital control, this Beginner's Guide to DCC explains the additional space required for decoders and wiring looms.
Measuring Your Locomotive Kit Body
Precision is a core benefit of 3D printing, but you must still check for internal support structures. These small resin "pips" are necessary during the printing process but can obstruct a motor if they aren't filed flush. You should also leave ample room for ballast. Because resin is lightweight, you'll need to pack the remaining internal void with lead or tungsten shot to ensure the wheels can grip the track during heavy shunting. Our GN15 locomotive kits are specifically designed with these internal requirements in mind to simplify your build.
Evaluating the Donor Chassis Dimensions
The 2026 market features modern donor units with high-torque motors and large flywheels. While these provide excellent slow-speed performance, they often take up more vertical space in the cab. You must decide if a vertical motor orientation works for your design or if a horizontal layout is needed to keep the cab windows clear. Always check if the wheelbase allows the wheels to sit centrally within the wheel arches of your kit to maintain a balanced, prototypical appearance.
The 2026 GN15 Donor Chassis Directory
Choosing the right power unit is the most critical decision you'll face when building gn15 model railway kits. While older mechanisms are still widely available on the second-hand market, the 2026 range of locomotives introduces coreless motors and improved slow-speed gearing that are ideal for industrial shunting. We categorise these donors into three distinct sizes: small industrial "critters," medium road-locomotives, and large quarry engines. Aligning your kit with these GN15 General Standards ensures that your finished model maintains the correct track geometry and electrical compatibility for exhibition layouts.
The market for specific motor bogies can be volatile, and you may find that certain traditional brands are harder to source this year. A proactive solution is to look toward modern HO scale chassis with similar axle spacing, as these often feature factory-fitted flywheels. These components help bridge the gap between basic hobbyist kits and professional-grade shunting performance, providing the momentum needed to traverse dusty industrial trackage without stalling.
Classic OO Gauge 0-4-0 Donors
The Hornby 0-4-0 remains the most accessible entry point for most UK modellers. Models like the "Holden" 101 or the SR Class B4, often priced around £35.99, offer a robust and simple mechanism. Removing the original body is straightforward, though you should be careful not to snag the delicate pickup wires. Bachmann's "Percy" or "Greg" mechanisms are often overlooked because of their origins in toy ranges, yet they provide heavy-duty chassis that fit many small industrial shells perfectly. If you require a more refined wheelbase or finer wheel profiles, Electrotren and Dapol alternatives are excellent choices for improving reliability on complex pointwork.
Specialist Power Bogies and On30 Donors
For larger diesel kits, the Bachmann On30 Davenport is the gold standard. It provides a heavy, reliable frame that handles the weight of a 1:24 scale resin locomotive with ease. If your project is a small railcar or a tiny "critter" diesel, you might traditionally look for a Tenshodo "Spud" motor bogie. However, current 2026 stock levels for Tenshodo are low, with some retailers only stocking the 26mm wheelbase. As a solution, many modellers are switching to Japanese-made coreless power bogies or "Black Beetle" units which offer superior torque for heavy hauls. For a broader look at how these parts fit into your overall modelling journey, check out our guide on Getting Started in GN15 Scale.
Modification Techniques: Mounting Your Body to the Chassis
The mechanical marriage between a 3D-printed shell and a metal donor chassis is often the most daunting phase of building gn15 model railway kits. You're working with two components that were never originally intended to fit together, which can lead to alignment issues or wobbly running. A proactive solution is to treat the donor chassis as a "blank canvas," stripping away unnecessary plastic details to reveal the core motor block. When removing the original body from a 2026 Hornby 0-4-0 or similar unit, work slowly to avoid snagging the delicate copper pickup strips that transfer power from the wheels.
Once the motor is exposed, you may find that small metal or plastic tabs on the chassis block prevent the body from sitting flush. This is where the "Chassis Trim" comes in. Using a fine needle file or a hobby saw, you can safely remove these obstructions. However, you must protect the motor and gears from metal filings. We suggest wrapping the mechanism in low-tack masking tape during this process. After filing, use a vacuum or compressed air to ensure no conductive dust remains, as even a tiny fragment can cause a short circuit or jam the high-torque gearing found in modern coreless motors.
Electrical continuity is the lifeblood of a smooth-running industrial shunter. Resin dust from the sanding process is non-conductive, but it acts as an insulator if it settles on the wheel treads or pickups. Always clean the chassis with a dedicated track cleaner or isopropyl alcohol after the fitting process is complete. If you're ready to start your own project, explore our range of GN15 Locomotive & Scenery Kits designed for common UK donor units.
Preparing 3D Printed Resin Shells
While our kits utilize high-precision 3D printing for consistent internal dimensions, some manual preparation is still beneficial. Use a fine-grit sandpaper to smooth the internal surfaces where they meet the chassis block. This ensures a snug fit without putting undue stress on the resin. If the kit doesn't have built-in mounting points, you can easily create them using styrene strips or brass L-angles bonded with cyanoacrylate. Once your fit is perfect, you can move on to Painting 3D Printed Models to bring the industrial aesthetic to life.
Removable Bodywork for Maintenance
Permanently gluing your shell to the chassis is a common mistake that complicates future maintenance. Locomotives require regular lubrication and pickup cleaning to maintain their performance. A better approach is to use rare-earth magnets for a "snap-on" fit. By embedding small magnets into the chassis and the shell, the body remains secure during operation but can be removed in seconds. Alternatively, you can use hidden screw techniques, where a mounting bolt is concealed beneath a removable detail like a coal load or a water tank filler cap, maintaining the prototypical look of your model.
Refinement: Performance Tuning and Digital Integration
The final stage of building gn15 model railway kits involves transforming a mechanical assembly into a living, breathing industrial machine. While the physical fit is now secure, achieving a realistic "industrial crawl" requires careful attention to electrical refinement and mass. A common constraint of 3D-printed resin shells is their lack of weight, which leads to poor electrical pickup and limited tractive effort. A proactive solution is to pack every available internal cavity with high-density ballast, such as lead shot or tungsten putty, ensuring the wheels press firmly against the rail head during heavy shunting operations.
Digital integration is where modern GN15 models truly stand apart. As of July 2026, the NMRA is reviewing several DCC standards, including S-9.2.2 for configuration variables and S-9.1 for electrical standards. Staying compliant with these updates ensures your locomotive remains compatible with the latest control systems. Because GN15 locomotives often represent small, open-cab "critters," you must find a proactive way to hide decoders and stay-alive capacitors. Utilizing a stay-alive unit is particularly effective for industrial layouts, as it provides the necessary energy to bridge small gaps in power caused by dusty track or complex pointwork.
DCC and Sound Conversion
Space is always at a premium, even in larger scales. We recommend using small-form-factor nano decoders from reputable brands like Zimo or ESU to keep the cab area as clear as possible. When wiring your pickups and motor, use thin, flexible decoder wire to prevent the loom from pushing the body out of alignment. Sound installation is uniquely rewarding in GN15; the large resin cab acts as a natural acoustic chamber. For the best results, place an upward-firing sugarcube speaker inside the fuel tank or beneath the cab floor. This orientation utilizes the shell's internal volume to produce a deeper, more resonant engine note that matches the heavy industrial prototype.
Detailing and Finishing Touches
Once the electronics are settled, focus on the visual integration of the chassis and body. A shiny, black plastic chassis will immediately break the illusion of a work-worn industrial engine. We suggest weathering the wheels and coupling rods with a mix of dark rust and oily grime pigments to match the finish of your shell. Adding a 1:24 scale figure is not just a cosmetic choice; a well-placed driver can effectively hide the top of a vertical motor block or a bulky capacitor. Before you consider the project finished, conduct a final test run on your tightest curves and most difficult points. This ensures there is no binding or electrical arcing before the locomotive enters regular service on your layout.
Bring Your Industrial Vision to Life
Successfully building gn15 model railway kits requires more than just an eye for detail; it demands a structured approach to mechanical integration. We've explored how a thorough internal void audit prevents costly fitting errors, while selecting modern 2026 donors ensures your "critters" maintain a realistic industrial crawl. While the physical constraints of a resin shell can be challenging, utilizing magnetic mounts and strategic weighting provides a reliable solution for long-term operation.
If you're ready to start your next project, we're here to support your journey. Explore our range of GN15 Locomotive Kits designed for easy chassis fitting. Our models are specifically designed for popular Hornby and Bachmann donors, utilizing high-detail 3D printed resin construction that makes modification straightforward. We provide expert UK-based support to ensure your narrow gauge build is a success from the first measurement to the final shunting run.
The transition from a static kit to a functioning locomotive is the most rewarding part of the hobby. With the right chassis and a bit of patience, your layout will soon be alive with the authentic character of minimum gauge railroading.
Frequently Asked Questions
What is the best budget chassis for a GN15 beginner?
The Hornby 0-4-0 chassis is the most cost-effective entry point for those just starting. While these mechanisms are simple, they are incredibly robust and widely available for around £35.99 in the 2026 range. Using this donor simplifies building gn15 model railway kits because many 3D-printed bodies are designed specifically to clip onto this frame with minimal modification.
Can I use HO gauge American locomotives as donors for GN15?
You can certainly use American HO gauge locomotives as donors because they run on the same 16.5mm track as UK OO gauge. While the scale of the original body is different, the underlying mechanism is compatible with GN15 proportions. A proactive solution is to check the wheelbase dimensions against your resin shell to ensure the wheels align correctly with the wheel arches.
How do I make my GN15 locomotive run slower for realistic shunting?
Achieving a realistic shunting speed often requires a dedicated electronic solution rather than mechanical changes. While basic controllers might cause "cogging" at low voltages, a high-quality pulse width modulation (PWM) controller or a DCC decoder allows for fine voltage control. You can also add internal ballast to increase friction and improve electrical contact at low speeds.
Do I need to change the wheels on my donor chassis for 16.5mm track?
No wheel changes are necessary because GN15 is specifically designed to run on standard 16.5mm gauge track. This compatibility is the primary reason why OO and HO gauge donor units are so popular in the hobby. However, you should ensure your track conforms to the 2026 NMRA standards to prevent derailments on tight industrial curves or complex pointwork.
Is it possible to fit a sound decoder into a small GN15 diesel shell?
It is entirely possible to fit sound into a small diesel shell by utilizing modern nano decoders. While space is a significant constraint, the hollow body of a GN15 locomotive provides a natural acoustic chamber for a sugarcube speaker. We recommend mounting the speaker upward to let the sound resonate through the cab windows for the best results.
What glue is best for attaching resin bodies to metal donor chassis?
A high-viscosity cyanoacrylate or a two-part epoxy is the best choice for bonding resin bodies to metal chassis. While plastic cement will not work on resin or metal, these adhesives create a permanent mechanical bond. A proactive solution is to use rare-earth magnets instead, which allows for easy removal during motor maintenance or lubrication.
How do I measure the wheelbase for a Narrow Minded Railworks kit?
To measure the wheelbase for building gn15 model railway kits, calculate the distance from the centre of the front axle to the centre of the rear axle. You should use digital calipers for this measurement to ensure accuracy within 0.1mm. Our kit descriptions provide these dimensions to help you select a compatible donor before you begin the assembly process.
Can I use an N gauge chassis for GN15 locomotives?
An N gauge chassis is not compatible with GN15 because the track gauge is only 9mm. While these tiny motors are powerful, they cannot fit the 16.5mm track required for this scale. If you are looking for a smaller mechanism, a proactive solution is to search for 0-4-0 motor bogies designed for HO or OO gauge instead.
